Two-way high pressure maintaining electric pump

It can be equipped with oil cylinders or special machines to meet the requirements of lifting, bending, extrusion, shearing, riveting, disassembly, and pressing.


  • Features

The hydraulic electric pump has dual-circuit oil supply to avoid slow spring return and non-synchronization. It is convenient and quick: the product design has high and low pressure two-stage, fast oil output, fast speed, high efficiency and high pressure. The pressure overload protection device can avoid overload damage; at the same time, it is equipped with a pressure gauge to observe the pressure changes during work at any time.


  • Parameters

Parameter model

preset pressure

Limited Data

Motor Power

Fuel tank capacity

High pressure

Low pressure

High pressure flow

Low pressure flow

DCE0.75

63Mpa

6.3Mpa

63Mpa

0.7L/min

2.4L/min

0.75KW

15L

DCE1.5

63Mpa

4Mpa

63Mpa

1.0L/min

6L/min

1.5KW

30L,40L,60L

DCE2.2

63Mpa

4Mpa

63Mpa

2.4L/min

9L/min

2.2KW

40L,60L

DCE3.0

63Mpa

4Mpa

63Mpa

3.0L/min

9L/min

3.0KW

40L,60L

DCE4.0

63Mpa

4Mpa

63Mpa

4.0L/min

9L/min

4.0KW

40L,60L

DCE5.5

63Mpa

4Mpa

63Mpa

6.0L/min

9L/min

5.5KW

90L,120L

DCE7.5

63Mpa

4Mpa

63Mpa

7.0L/min

9L/min

7.5KW

90L,120L

DCE11

63Mpa

4Mpa

63Mpa

11.0L/min

23L/min

11.0KW

160L,200L,300L

DCE15

63Mpa

4Mpa

63Mpa

15.0L/min

23L/min

15.0KW

160L,200L,300L

  • Programme

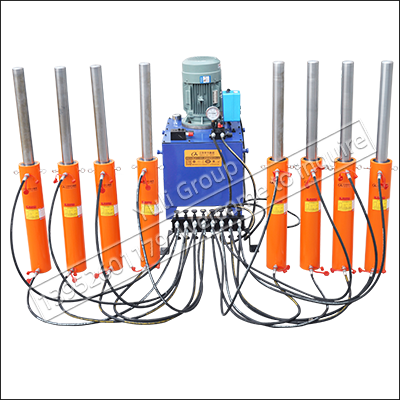

  Long stroke eight synchronous electric set


    Features: The hydraulic electric pump has dual-circuit oil supply, avoiding slow spring return and non-synchronization.

    It is convenient and quick. The product is designed with high and low pressure two-stage, fast oil output, high speed,

    high efficiency and high pressure. The pressure overload protection device can avoid overload damage; at the same time,

    it is equipped with a pressure gauge to observe the pressure change during work at any time.

    Uses: 1. Equipped with oil cylinders or special machines, it can meet the requirements of lifting, bending, straightening,

               extrusion, shearing and riveting, disassembly, and pressing.

                2. The device is used as a hydraulic power source in some mechanical equipment.

                3. As a pressure test pump station for various high-pressure hydraulic components, high-pressure containers, and

                high-pressure hoses.
