Single-acting hydraulic jack

Single-acting design, built-in high-strength return spring to make the piston quickly reset;

Made of alloy steel material, durable;

The coated piston rod is resistant to corrosion and strain;

The stop ring prevents the piston from over-travel, and the top of the piston is equipped with a non-slip saddle;

The outer ring thread, plunger thread and bottom mounting hole make the jack suitable for various mounting positions;

The high temperature baking paint makes the surface of the jack more resistant to corrosion;Most models have aluminum alloy handles, which are easy to carry on site;

The dust-proof seal ring design can reduce the internal pollution of the cylinder and extend the service life;


  • Features

The bottom mounting hole makes installation and positioning easy, and the inner wall of the cylinder is equipped with an alloy guide ring to extend the service life.With a wide range of stroke length and lifting capacity, it is an ideal choice for maintenance, manufacturing, construction and other operations.


  • Parameters


Model

Tonnage

Stroke

Body height

Stretch height

Cylinder area

Oil volume

Cylinder outer diameter

Weight

RC-50

5

16

41

57

6.5

10

55

1.0

RC-51

5

25

90

115

6.5

16

55

1.0

RC-53

5

76

145

221

6.5

50

55

1.5

RC-55

5

127

196

323

6.5

83

55

1.9

RC-57

5

178

253

431

6.5

115

55

2.4

RC-59

5

232

304

536

6.5

151

55

2.8

RC-101

10

25

80

105

14.5

38

60

1.8

RC-102

10

54

121

175

14.5

78

60

2.3

RC-104

10

105

161

266

14.5

152

60

3.3

RC-106

10

156

238

394

14.5

226

60

4.4

RC-108

10

203

288

491

14.5

294

60

5.4

RC-1010

10

257

339

596

14.5

373

60

6.4

RC-1012

10

305

390

695

14.5

441

60

6.8

RC-1014

10

356

441

797

14.5

516

60

8.2

RC-151

15

25

104

129

20.3

51

70

3.3

RC-152

15

51

129

180

20.3

104

70

4.1

RC-154

15

102

180

282

20.3

205

70

5.0

RC-156

15

152

252

404

20.3

308

70

6.8

RC-158

15

203

302

505

20.3

411

70

8.2

RC-1510

15

254

353

607

20.3

516

70

9.5

RC-1512

15

305

404

709

20.3

619

70

10.9

RC-1514

15

356

455

811

20.3

723

70

11.8

RC-251

25

25

120

145

33.2

86

90

5.9

RC-252

25

51

145

196

33.2

166

90

6.4

RC-254

25

102

196

298

33.2

339

90

8.2

RC-256

25

159

253

412

33.2

525

90

10.0

RC-258

25

210

304

514

33.2

697

90

12.2

RC-2510

25

260

355

615

33.2

867

90

14.1

RC-2512

25

311

405

716

33.2

1033

90

16.3

RC-2514

25

362

456

818

33.2

1202

90

17.7

RC-308

30

210

337

547

42.1

880

108

18.1

RC-502

50

51

136

187

71.2

362

127

15.0

RC-504

50

102

187

289

71.2

719

127

19.1

RC-506

50

159

243

402

71.2

1131

127

23.1

RC-5013

50

337

421

758

71.2

2399

127

37.6

RC-756

75

156

246

402

102.6

1601

159

29.5

RC-7513

75

334

452

786

102.6

3417

159

59.0

RC-1006

100

168

267

435

133.3

2239

180

59.0

RC-10010

100

260

359

619

133.3

3466

180

72.6


  • Programme

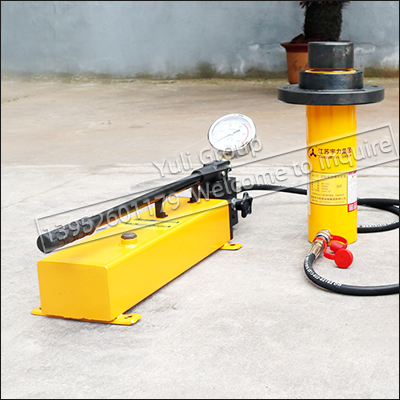

One-way manual pump set

Features: The mounting hole at the bottom makes installation and positioning easy, and the inner wall of the cylinder is equipped with an alloy guide ring to extend the service life.

Uses:Used in a wide range of stroke length and lifting capacity, it is an ideal choice for maintenance, manufacturing, construction and other operations.





One-way ultra-high pressure electric pump set

Features: The mounting hole at the bottom makes installation and positioning easy, and the inner wall of the cylinder is equipped with an alloy guide ring to extend the service life.

Uses:Used in a wide range of stroke length and lifting capacity, it is an ideal choice for maintenance, manufacturing, construction and other operations.






One-way manual pump set

Features: The mounting hole at the bottom makes installation and positioning easy, and the inner wall of the cylinder is equipped with an alloy guide ring to extend the service life.

Uses:Used in a wide range of stroke length and lifting capacity, it is an ideal choice for maintenance, manufacturing, construction and other operations.
